MIL-STD-1275E Surge Suppressor
Description

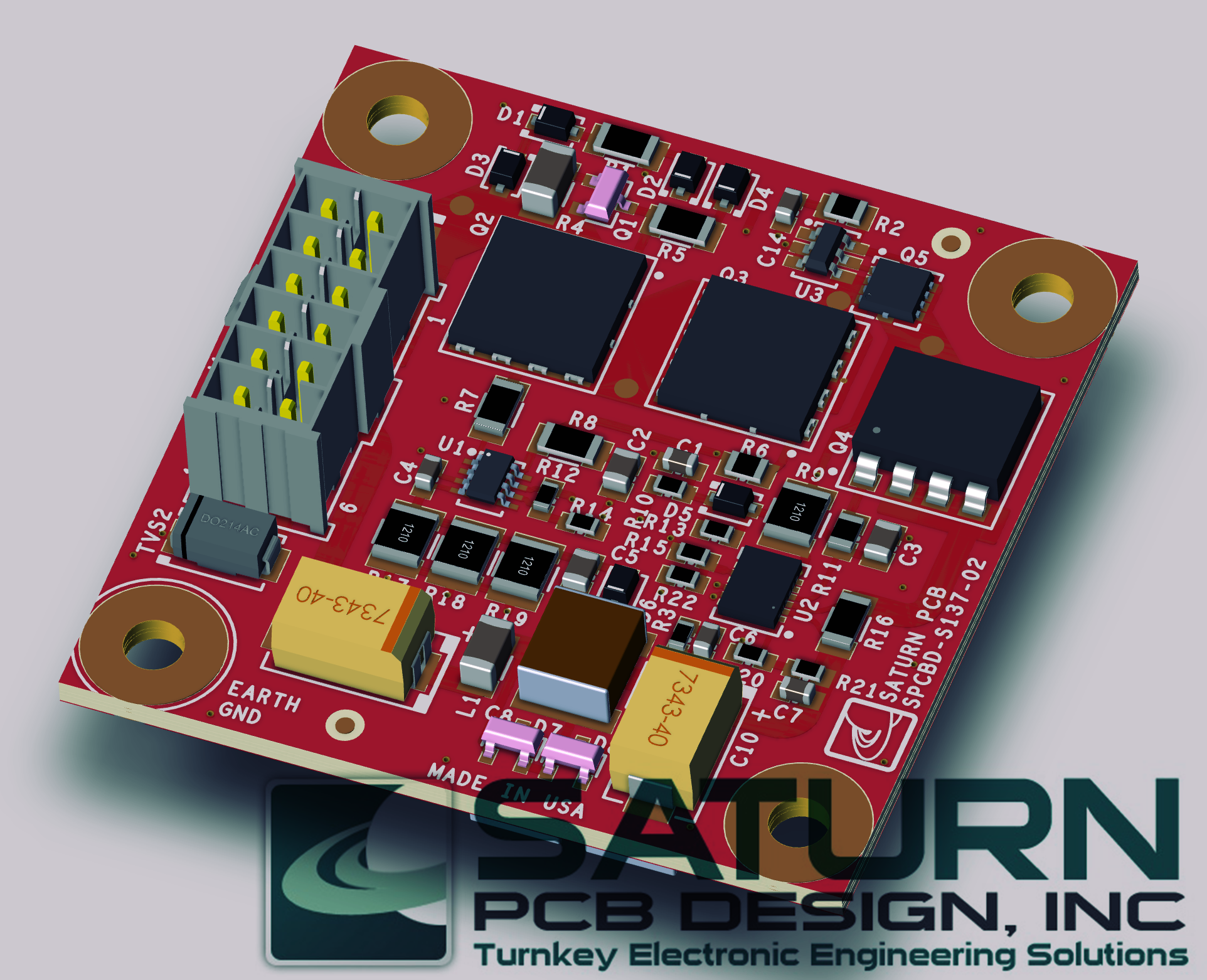

The SPCBD-S137-02 offers a cost-effective solution for MIL-STD-1275E applications and other electronic systems requiring a high-performance uninterrupted surge suppressor. It features a 2.5A current limit and an overvoltage threshold of 34.5V. Designed to meet the demanding requirements of MIL-STD-1275E, it protects against 100V surges, 250V spikes, and reverse polarity conditions up to 250V.
Applications:
- 28 Volt military / aerospace applications
Specifications
- Current limited at 2.5A
- Vin: 12 to 33VDC, limits at 34.5V
- 100V Surge protection
- 250V Spike protection
- Ripple protection
- Reverse polarity protection
- Low limit set to 11.3V
- TVS Diodes on input
- PCB Size: 1.7″ x 1.7″
- 125°C Operating temperature
- Multi-layer PCB for better heat dissipation
- Can be customized to meet your project needs
